Advanced Amplifiers part of the Advanced Equipment Rentals Group offer a wide range of RF and Microwave Amplifiers covering 10kHz – 40GHz. Using the latest technology these amplifiers combine high power, small footprint and low cost per watt.

Designed to meet the requirements of the EMC, Medical, Scientific and Telecom Industries, these European made amplifiers also offer simple front panel operation with comprehensive monitoring of all parameters.

Powers of up to 4KW are available to enable generation of over 200V/M in a standard chamber, more in mode stir.

Download a typical Advanced Amplifier Manual


AA-20M1G-50, 20MHz-1GHz, 50W

AA-700M6G-300, 700MHz-6GHz, 300W

AA-10M1G-100, 10-1000MHz, 100W

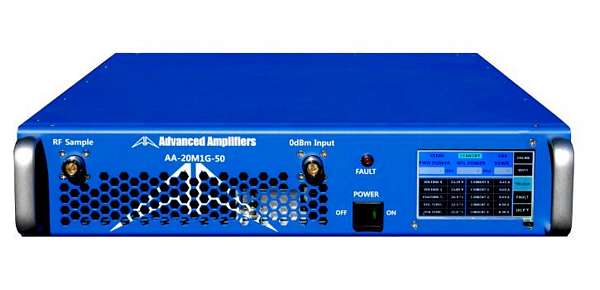

AA-20M1G-50 SOLID STATE HIGH POWER AMPLIFIER

FEATURES

  • Rack mounted system
  • Class AB linear LDMOS design
  • Instantaneous wide bandwidth
  • Suitable for all modulations standards
  • Built-in protection circuits
  • High reliability and ruggedness

ELECTRICAL SPECIFICATIONS

Parameter

Specification

Notes

Operating Frequency Range

20 - 1000 MHz



Power Output

50 Watt Min

Saturated CW

Power Gain

47 dB Min



Power Gain Flatness

3.0 dB p-p Max



Input Return Loss

10 dB Min

Relative to 50 Ohm

2-Tone Intermodulation (IMD)

>30 dBc Typ

37dBm/Tone, Δ = 1MHz

Harmonics 2nd / 3rd

>25dBc / 15 dBc Typ

At Rated Pout

Non Harmonics Spurious

60 dBc Min

Non Harmonics

Operating Voltage

100 - 240 VAC



Power Consumption

350 Watt Max

At rated Pout

Max Input Power

+8 dBm

Without damage

Load VSWR Protection

∞ : 1



ENVIRONMENTAL CHARACTERISTICS

Parameter

Specification

Notes

Operating Ambient Temperature

0 to +50 °C



Storage Temperature

-40 to +85 °C



Relative Humidity

5 to 95 %

Non Condensation

MECHANICAL SPECIFICATIONS

Parameter

Specification

Notes

Dimensions W x H x D

430 x 88 x 562 mm

2U

Weight

10 kg.



RF Connectors In/Out

Type-N Female

Front Panel Standard

AC Power / Interface Connector

IEC 60320-C14 / 9-Pin D-Sub



Cooling

Built in Fan Cooling



OPTIONAL:  Digital Monitor & Control

FWD, REV, VSWR, GAIN, ALC, V & I, TEMP

Ethernet RJ-45 TCP/IP, RS422/485, Optional GPIB Interface

Remote Bluetooth application

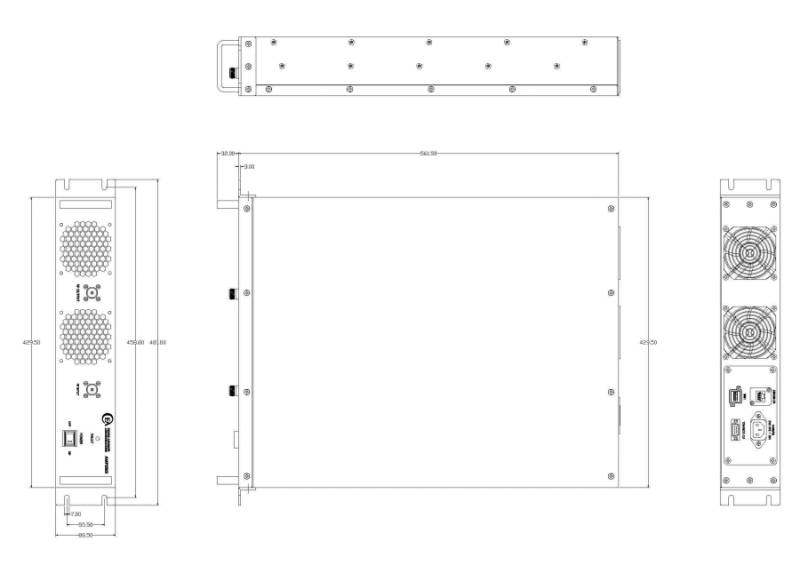

OUTLINE DRAWING


AA-10M1G-100 SOLID STATE HIGH POWER AMPLIFIER

FEATURES

  • Rack mounted system
  • Class AB linear LDMOS design
  • Instantaneous wide bandwidth
  • Suitable for all single channel modulations standards
  • Built-in protection circuits
  • High reliability and ruggedness

ELECTRICAL SPECIFICATIONS

Parameter

Specification

Notes

Operating Frequency Range

10 - 1000 MHz



Power Output

100 Watt Min

Saturated CW

Power Gain

50 dB Min



Power Gain Flatness

4.0 dB p-p Max



Input Return Loss

10 dB Min

Relative to 50 Ohm

2-Tone Intermodulation (IMD)

>30 dBc Typ

40dBm/Tone, Δ = 1MHz

Harmonics

>25 dBc Typ

At Rated Pout

Non Harmonics Spurious

60 dBc Min

Non Harmonics

Operating Voltage

100 - 240 VAC



Power Consumption

700 Watt Max

At rated Pout

Max Input Power

+8 dBm

Without damage

Load VSWR Protection

∞ : 1



ENVIRONMENTAL CHARACTERISTICS

Parameter

Specification

Notes

Operating Ambient Temperature

0 to +50 °C



Storage Temperature

-40 to +85 °C



Relative Humidity

5 to 95 %

Non Condensation



MECHANICAL SPECIFICATIONS

Parameter

Specification

Notes

Dimensions W x H x D

430 x 88 x 562 mm

2U

Weight

12 kg.



RF Connectors In/Out

Type-N Female

Front Panel Standard

AC Power / Interface Connector

IEC 60320-C14 / 9-Pin D-Sub



Cooling

Built in Fan Cooling



OPTIONAL:  Digital Monitor & Control

FWD, REV, VSWR, GAIN, ALC, V & I, TEMP

Ethernet RJ-45 TCP/IP, RS422/485

Remote Bluetooth application

OUTLINE DRAWING

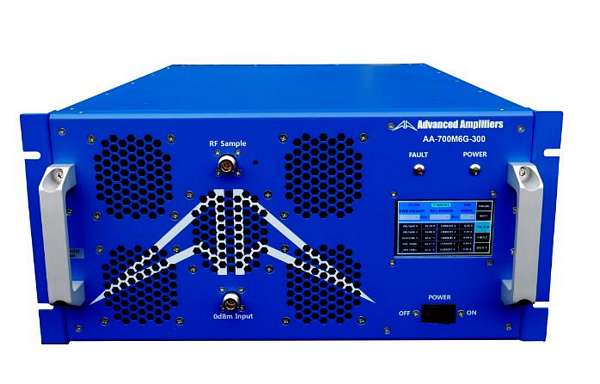

AA-700M6G-300 SOLID STATE HIGH POWER AMPLIFIER

FEATURES

  • Rack mounted system
  • Class AB linear GaN design
  • Instantaneous wide bandwidth
  • Suitable for all single channel modulation standards
  • Built-in protection circuits
  • High reliability and ruggedness

ELECTRICAL SPECIFICATIONS

Parameter

Specification

Notes

Operating Frequency Range

700 MHz - 6.0 GHz



Power Output @ Psat

300 Watt Typ



Power Output @ P1dB GCP

200 Watt Min

CW

Power Gain

53 dB Min



Power Gain Flatness

4 dB p-p Max

Constant input power

Gain Variation Over Temperature

±2.0 dB Max



Input / Output Return Loss

10 dB Min

Relative to 50 Ohm

2-Tone Intermodulation (IMD)

-30 dBc Typ

43dBm/Tone, Δ = 1MHz

Harmonics

-20 dBc Typ

At rated output

Non Harmonic Spurious

-60 dBc Max



Operating Voltage

180 - 240 VAC



Power Consumption

3000 Watt Max

At rated output

Max Input Power Protection

+5 dBm

Without damage

Load VSWR Protection

∞ : 1

< 10 Sec



ENVIRONMENTAL CHARACTERISTICS

Parameter

Specification

Notes

Operating Ambient Temperature

0 to +50 °C



Storage Temperature

-40 to +85 °C



Relative Humidity

5 to 95 %

Non Condensation



MECHANICAL SPECIFICATIONS

Parameter

Specification

Notes

Dimensions W x H x D

R5U Rack Mount Chassis

See outline drawing

Weight

45 Kg. Max



RF Connectors In/Out

Type-N Female

Front Panel Standard

AC Power

IEC 60320-C14 / 9-Pin D-Sub

Or equivalent

Cooling

Built in Fan Cooling

Variable speed

OPTIONAL:  Digital Monitor & Control

FWD, REV, VSWR, GAIN, ALC, V & I, TEMP

Ethernet RJ-45 TCP/IP, RS422/485

Optional GPIB Interface

Remote Bluetooth application

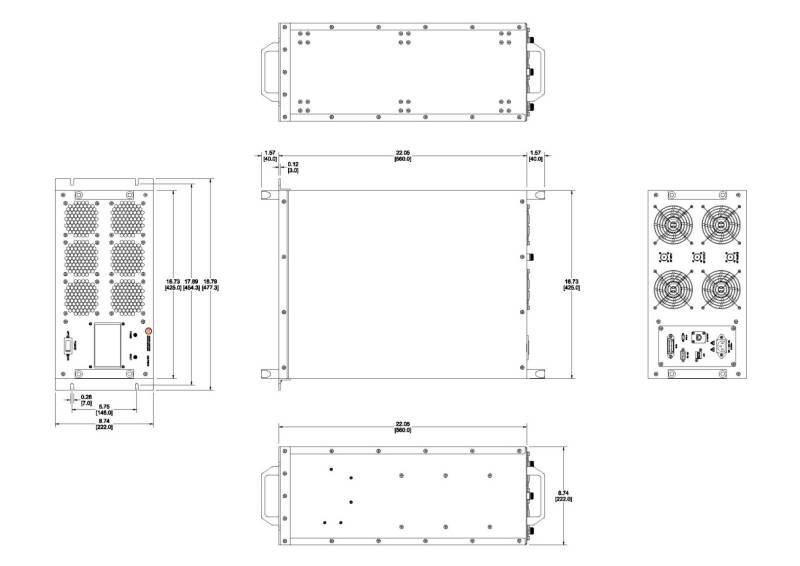

OUTLINE DRAWING

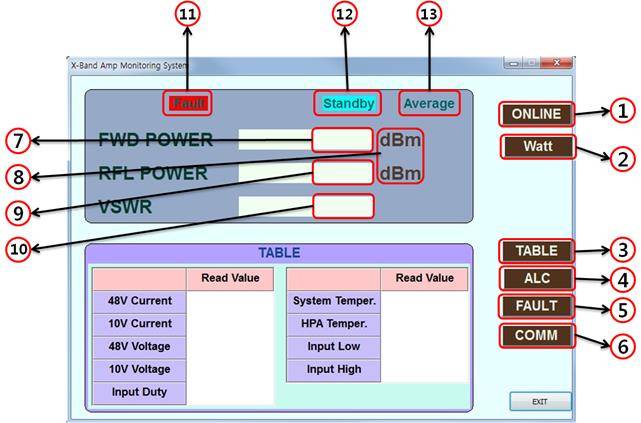

Basic Optional UI Display Interface

  1. ONLINE/STANDYBY: HPA ON/OFF.
  2. Watt/dBm: OUTPUT POWER UNIT.
  3. TABLE: HPA State Table.
  4. ALC: Auto Level Control.
  5. FAULT: Display alarm messages.
  6. COMM: Set the communication method.
  7. Display Forward Output Power dBm or W.
  8. Output Power Unit dBm or W.
  9. Display Reflected Output Power dBm or W.
  10. Display VSWR Value.
  11. Display Fault or Clear State.
  12. Display Standby or Online State.
  13. Display Output Power Average or Peak.

AA-10M1G-100

10MHz-1GHz

100W

AA12G-1000

1-2.5GHz,

1000W

AA-12G-4000

1-2GHz

4000W

AA-13G-125

1-3GHz

125W

AA-13G-500

1-3GHz

500W

AA16G-150

1-6GHz

150W

AA20M1G-50

20MHz-1000MHz

50W

AA-20M1G-300

20MHz-1000MHz

300W

AA80M1G-300

80MHz-1000MHz

300W

AA-80M1G-750

80MHz-1000MHz

750W

AA80M1G-1000

80MHz-1000MHz

1000W

AA80M1G-2000

80MHz-1000MHz

2000W

AA-100M1G-200

100MHz-1000MHz

200W

AA-1000M1G-1000

100-1200MHz

1000W

AA-618G-20

6-18GHz

20W

AA-618G-40

6-18GHz

40W

AA-618G-100

6-18GHz

100W

AA618G-300

6-18GHz

300W

AA700M3G-30

700MHz-3000MHz

30W

AA-700M6-50

700MHz-6GHz

50W

AA-700M6G-300

700MHz-6GHz

300W

AA-1826G-10

18-26.5GHz

10W

AA-1826G-40

18-26.5GHz

40W

AA-2100M-500

2-100MHz

500W

AA-2100M-1000

2-100MHz

1000W

AA-2100M-2000

2-100MHz

2000W

AA-2640G-40

26.5-40GHz

40W

For full specifications or specials please contact the factory.

For additional product information and pricing please contact NTD sales office
